Travelguard

CROSS SLIDE TYPE
Travelguard

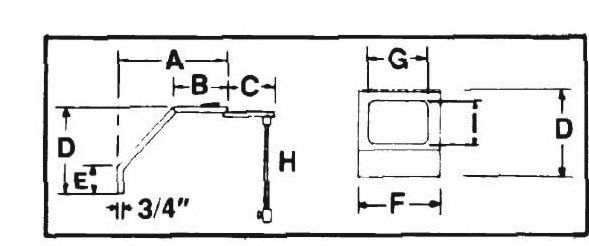

Travelguard Reference Table Image

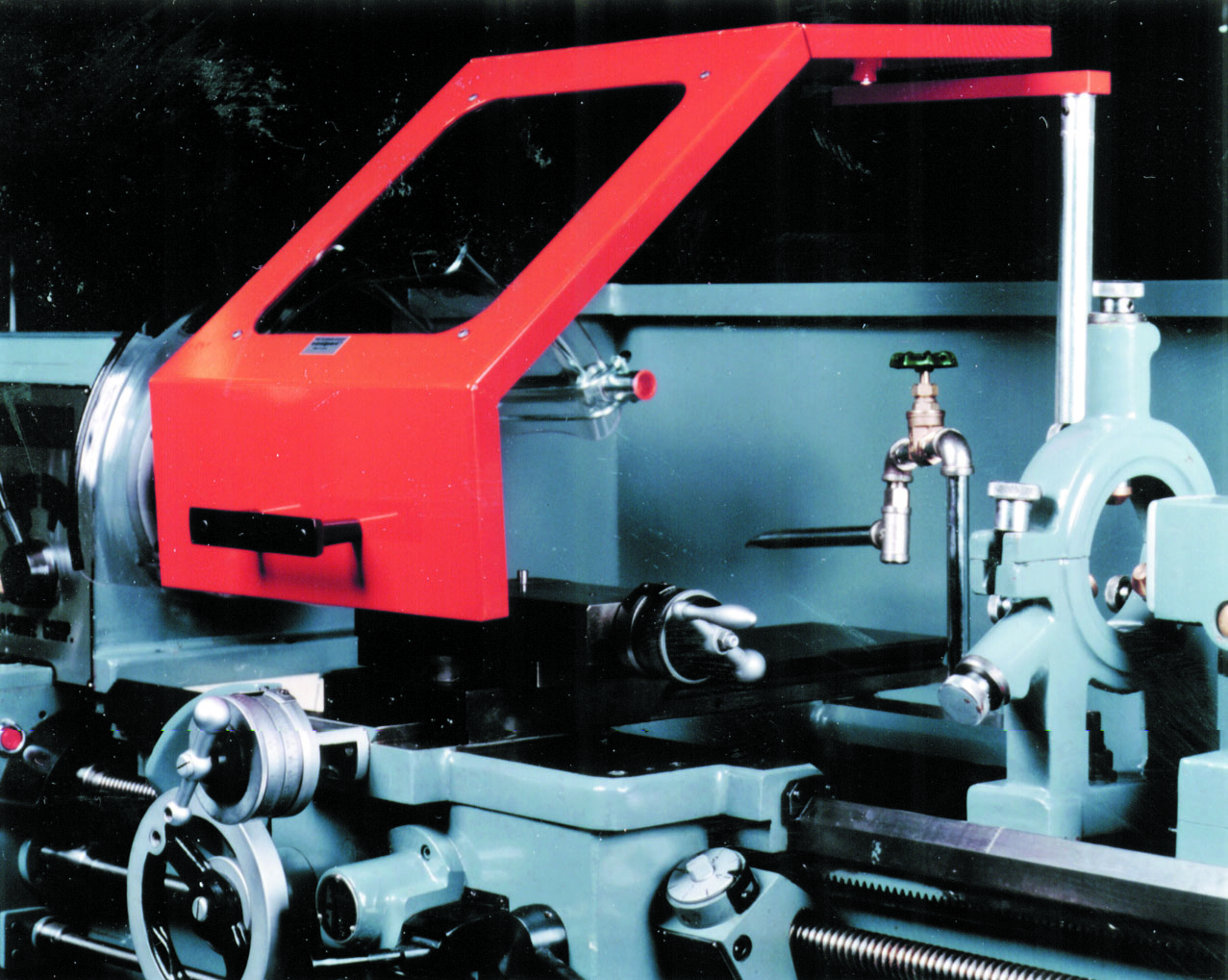

Extra heavy duty for lathes, grinding machines, etc. Operator protection wherever tool is cutting.

  • Easy to mount on cross slide (tool compound).
  • Fully adjustable in all directions - forwards & frontwards.
  • Heavy steel construction with thick LEXAN® window.
  • Frame is 3/4" construction made of heavy gauge steel with high quality painted finish.
  • Front panel is hinged and can be lifted for quick access to machine.
  • Replacement windows available upon request.

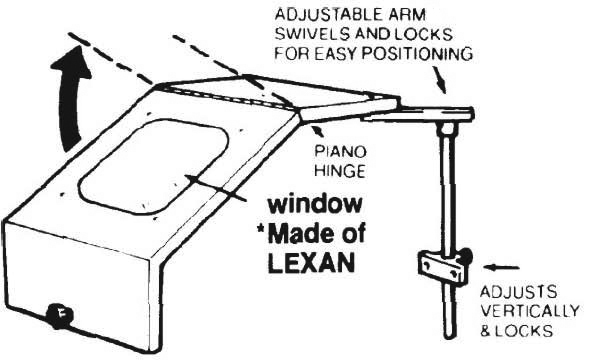

Travelguard Line Drawing *REG. TRADEMARK OF GENERAL ELECTRIC CO.
Model No.
Description
A
B
C
D
E
F
G
H
I
13086 20" Chuck Max 16 8 7 3/4 13 4 11 7/8 8 1/2 20 1/2 8 1/2
13087 28" Chuck Max 22 3/4 10 1/2 9 3/4 14 1/2 5 5/8 14 9 3/4 20 1/2 10 3/4
