Slide-Track Latheguard

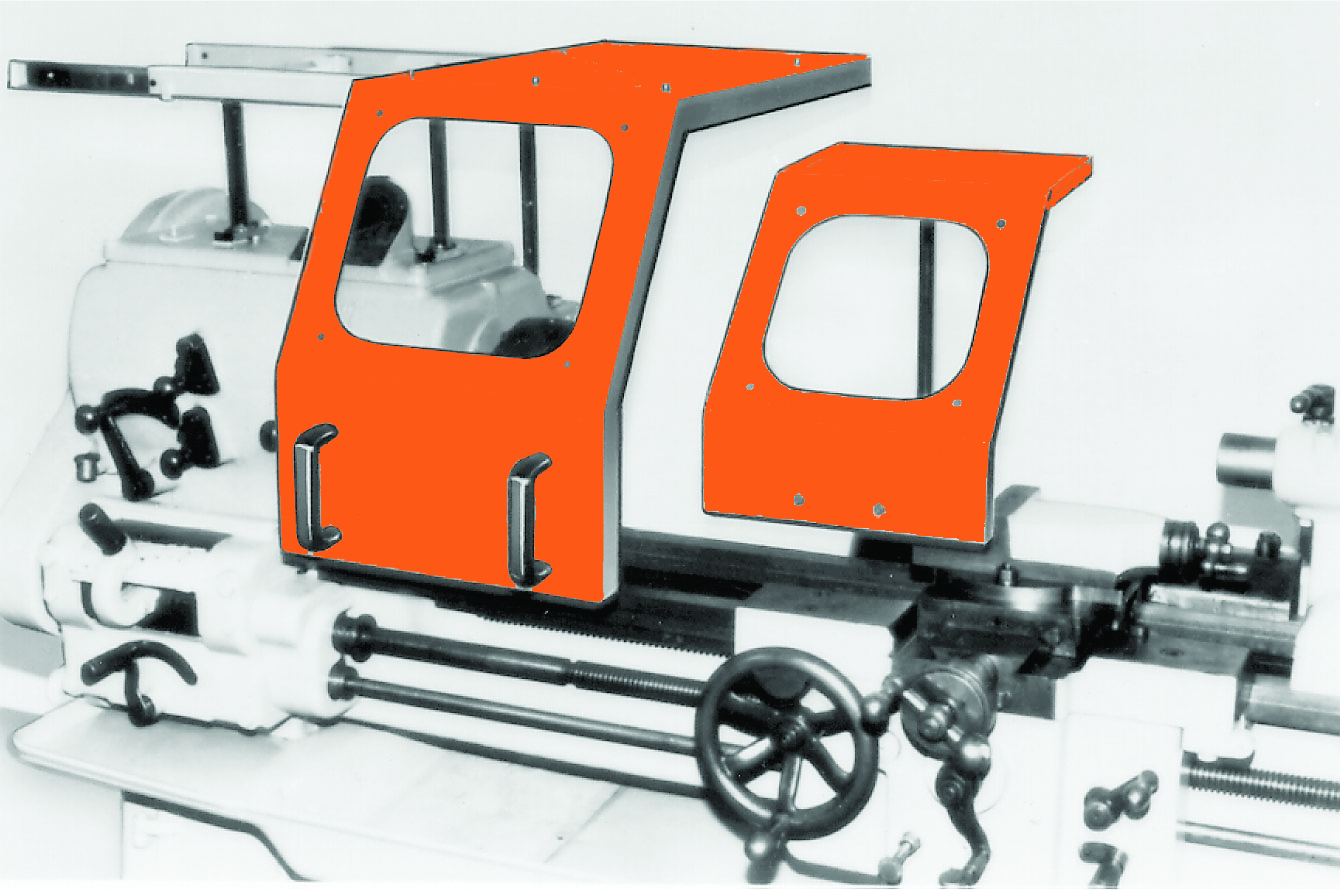

Heavy-Duty 14 Gauge Steel Shields with LEXAN® windows mount over headstock and slide over chuck for maximum protection! Allows easy access to the point of operation when power is off.

Fits conventional lathes and CNC machines
Two styles available: "Minor" and "Major"

Slide-Track Latheguard

Minor & Major Slide Track Latheguards

The "Minor" Slide-Track Latheguard features two (2) 3/16" thick LEXAN® windows. Being situated on the top and front inclined panels, these windows provide excellent visibility for the operator. The front panel hinges up to allow access to the controls and settings of the machine - The "Minor" is designed to guard lathes having chucks ranging from 10" diameter up to 24" diameters. (Model No. 13079 & 13080)

The "Major" Slide-Track Latheguard provides maximum operator protection on standard machines or large CNC lathes with chucks ranging up to 48" diameter. These guards incorporate one LEXAN® front panel window and do not require a top window. (Model No. 13081-13084)

Specifications and Ordering:

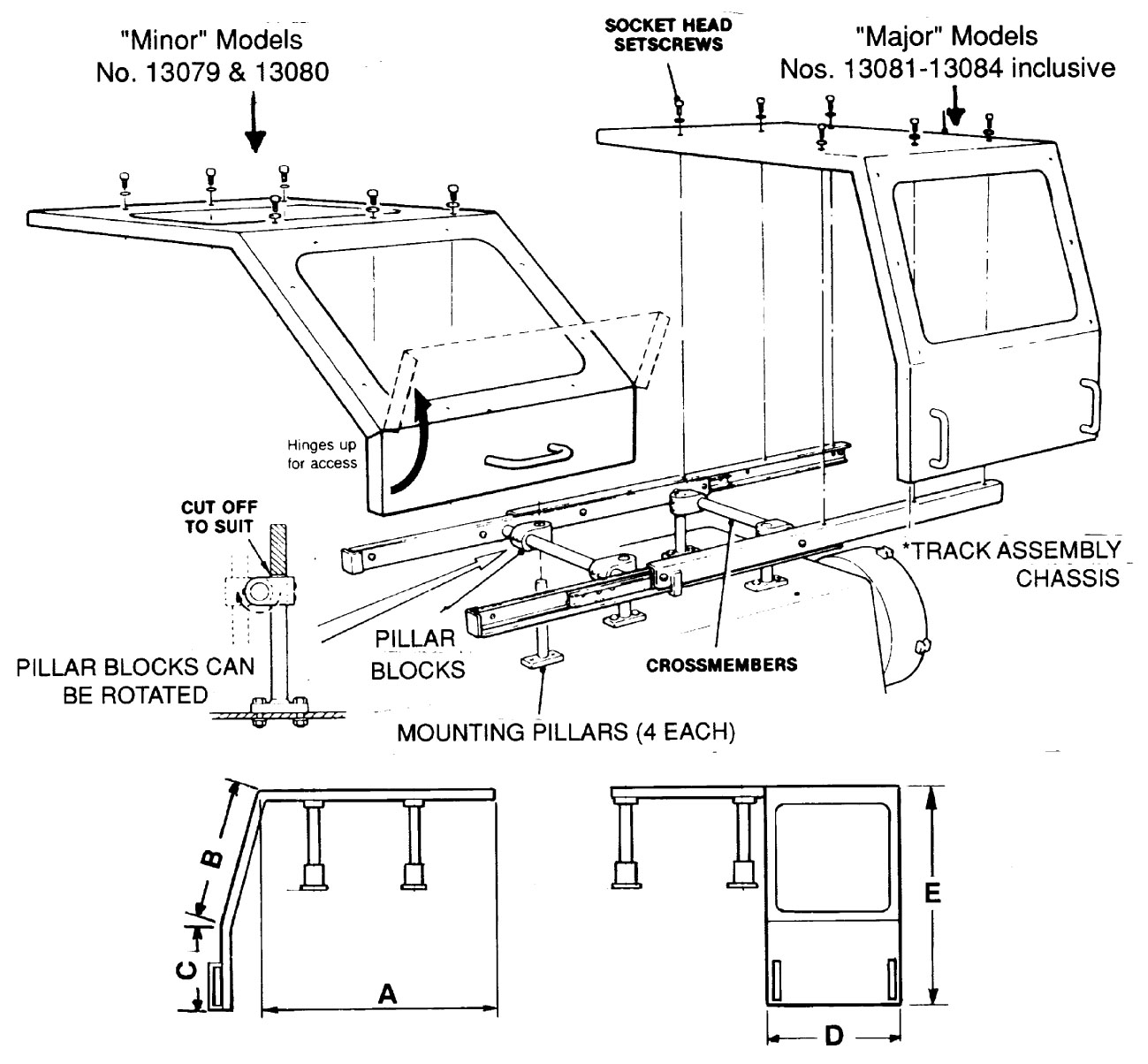

You can now install a professional heavy-duty guard on any size lathe. Simply screw the 4 pillar posts supplied at 4 sites around the headstock and then slip on the track assembly chassis. Now mount the shield. Pillar posts, in relation to cross-members are adjustable vertically hence easily positioned around the headstock without interference. All hardware is included with easy-to-follow instructions.

Slide-Track Latheguard *(Supplied Completely Assembled) Replacement Windows and Parts supplied upon request
Model No.
13079 24" 17" 19" 6" 14" 17.75"
13080 24" 17" 19" 6" 24" 17.75"
13081 28" 26" 14.88" 8.24" 19.75" 21.10"
13082 32" 27.19" 16.50" 8.71" 19.75" 23.00"
13083 40" 29.56" 19.75" 9.81" 19.75" 26.90"
13084 48" 33.88" 23.00" 10.85" 19.75" 30.75"
