Latheguard™

Latheguard™

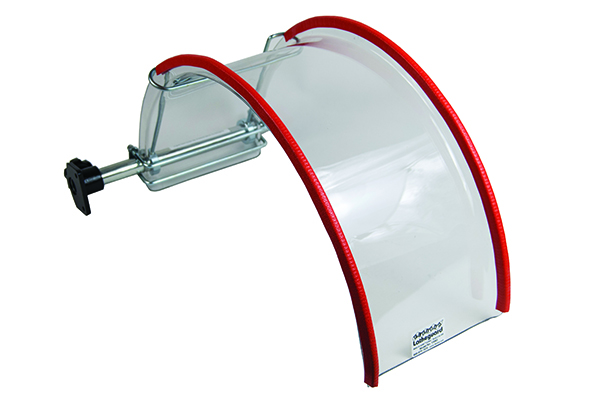

Clear LEXAN®, Semi-Circular Wrap-a-round Guards

  • Heavy Duty Cast Mounting bracket supplied.
  • Heavy duty chrome-plated extension tube and hardware.
  • Ready to mount; all you do is affix mounting bracket with two screws.
  • Back of shield is reinforced with plated wire-form housing.
  • Locks in swing away or functional positions.
  • Accepts 3 or 4 Jaw Chucks.
Latheguard
Latheguard

Neither Razor-Sharp Chips Nor Broken Tool Bits Will Penetrate The LEXAN® Shield

  • Rib reinforced
  • Robust construction
  • Light in weight
  • Swings away easily

Model No.
Suggested
Lathe Size
Center Height
(A)
(Shield Height)
Use With
Chucks
Shield
Width
(F)
Shield
Length
(B)
Tube
Length
(E)
12999 Very Small Lathes 3.9" Up to 6" Dia. 6 1/4" 7.8" 10"
13060 6 to 12 6" Up to 8" Dia. 6 1/4" 11.8" 10"
13061 12 to 16 8" Up to 12" Dia. 8" 15.8" 11 1/2"
13062 16 to 20 10" Up to 16" Dia. 8" 19.70" 13"
13064 20 to 24 13" Up to 20" 8" 23.6" 13"
13059 Extra Long Tube (E) for lathes where chuck sticks out a long way from headstock. 16"

Information and Specifications

  1. The Chuck Diameter being used on your Lathe makes for a good formula.
  2. Utilize Dimension "A" and other dimensions given in chart shown below.
  3. On Lathes with center heights of 7 inches or more there is a significant variation in the diameter of a 3-Jaw as against a Jaw Chuck. It may be necessary to install the next larger Latheguard to accommodate for the 4-Jaw Chuck. Keeping a double bracket (No. 13071) on the Lathe makes it possible to switch your latheguard from small to larger size and vice versa, in one minute.
  4. When calculating Dimensions "A", always allow ample clearance for largest machined part or furthest jaw extension.
NEITHER RAZOR-SHARP CHIPS NOR BROKEN TOOLS BITS WILL PENETRATE THE LEXAN® SHIELD

Replacement Shields for Latheguard™

Model No. 13072

Replacement for: 12999
Shield Width (F): 6 1/4"
Shield Length (B): 7.8"
Shield Height (A): 3.9"

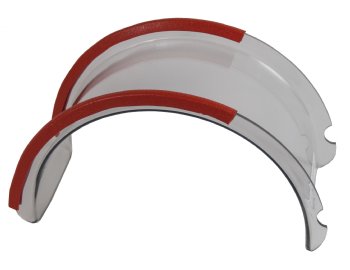

Model No. 13065

Replacement for: 13060
Shield Width (F): 6 1/4"
Shield Length (B): 12"
Shield Height (A): 6"

Model No. 13066

Replacement for: 13061
Shield Width (F): 8"
Shield Length (B): 16"
Shield Height (A): 8"


Model No. 13063

Replacement for: 13062
Shield Width (F): 8"
Shield Length (B): 19.70"
Shield Height (A): 10.25"

SMALL LATHEGUARD REPLACEMENT SHIELD

Model No. 13067

Replacement for: 13064
Shield Width (F): 8"
Shield Length (B): 24"
Shield Height (A): 12"

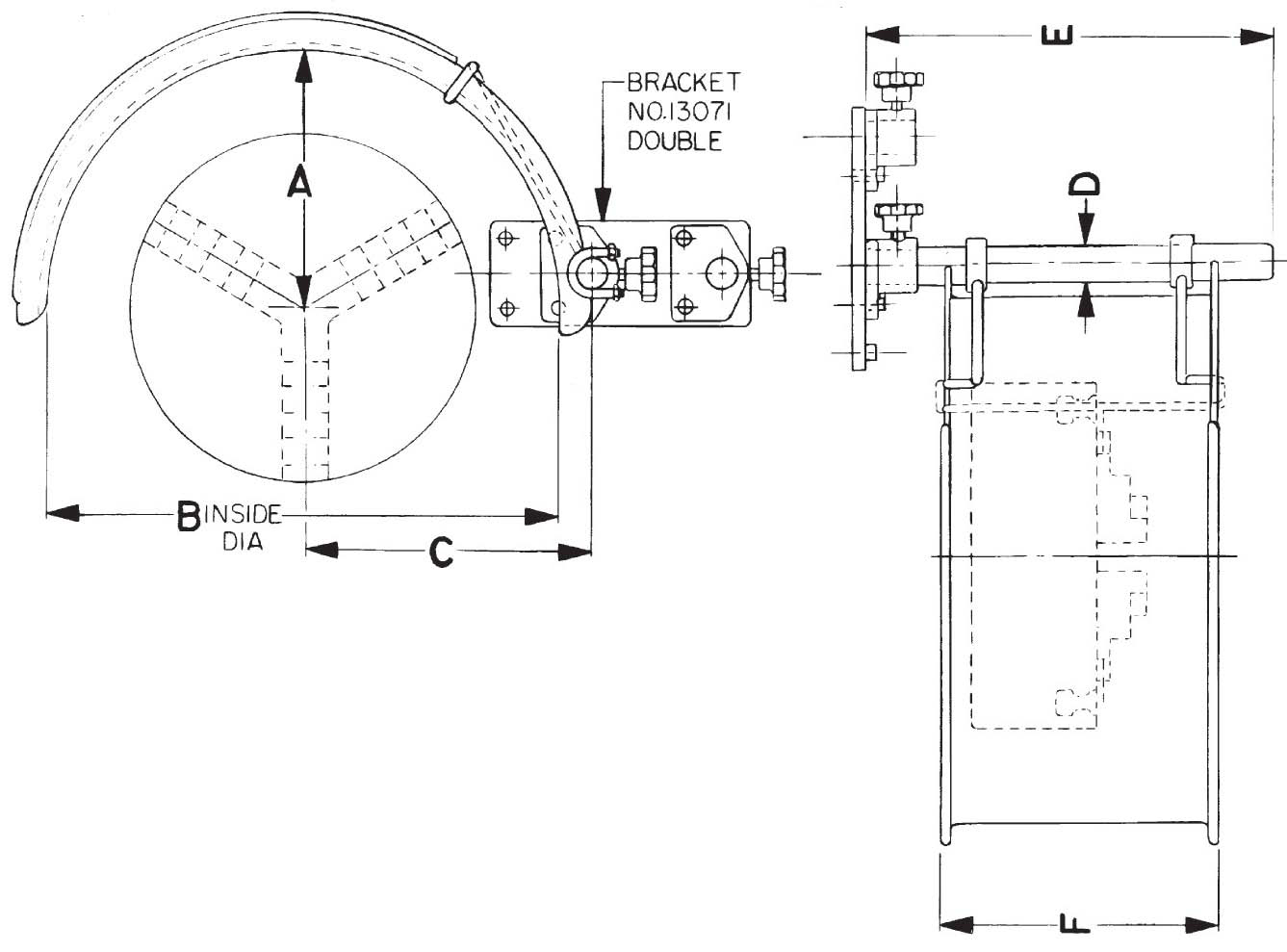

Model No.
Dimensions
A
B
C
D
E
F
12999 3.9 7.8 5.0 1.0 10 6.25
13060 6.0 11.8 7.0 1.0 10 6.25
13061 8.0 15.8 9.0 1.0 11.5 8.0
13062 10.0 19.7 11.0 1.0 13 8.0
13064 13.0 23.6 12.9 1.0 13 8.0
SMALL LATHEGUARD REPLACEMENT SHIELD

Latheguard™ Brackets

All Latheguards supplied with mounting bracket No. 13070.
Order from below if your Lathe needs either #13068 or #13069 Bracket, or No. 13071 Double Bracket.

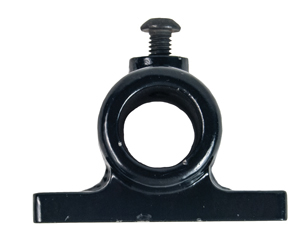

MOUNTING BRACKET FOR TOP/BACK OF HEADSTOCK

Model No.13068

For mounting to top or back of headstock.

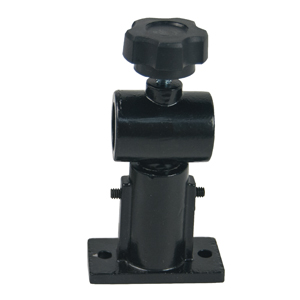

EXTENSION/TELESCOPING MOUNTING BRACKET

Model No.13069

Extension or telescoping type for top or back mounting.
Range: 3.25" to 5"

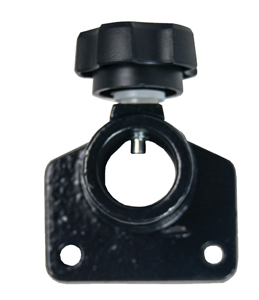

STANDARD MOUNTING BRACKET

Model No.13070

If you want an extra mounting bracket.

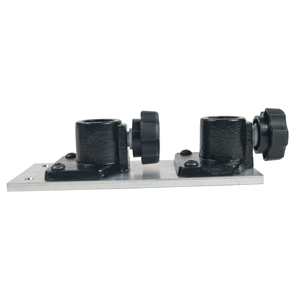

DOUBLE MOUNTING BRACKET

Model No.13071

Double bracket: this enables you to mount the next larger shield when changing from a 3 jaw chuck to a 4 jaw chuck.

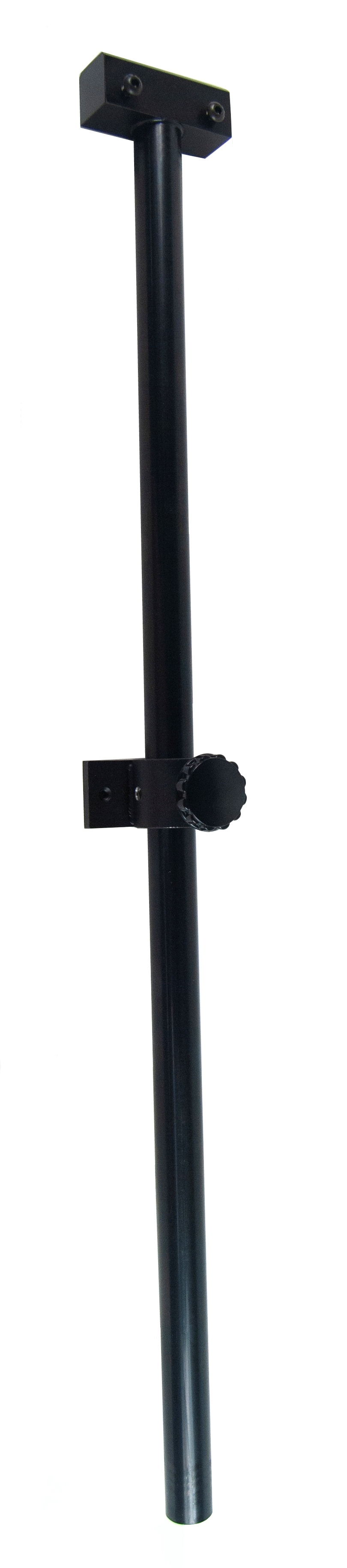

LONG REACH MOUNTING KIT

Model No.13075

Long Reach Latheguard Mounting Kit for easy mounting of Latheguard on large machines for difficult applications. Mount can be positioned up to 27" from Latheguard.
