Flexbar Chuckguards™

The Flexbar Small Chuckguard™

Designed for Heavy Duty Applications Where A Steel Shield is Recommended on Lathes up to 20" Diameter.
Special Features:
  • Heavy Duty Cast Mounting bracket supplied (Model No.13070).
  • Optional Mounting Brackets for various applications are available.
  • Heavy-Duty Chrome-plated Extension Tube and Hardware.
  • Ready to mount; All you do is affix mounting bracket with two screws.
  • Locks in swing away or functional positions.
  • Replacement windows available upon request.

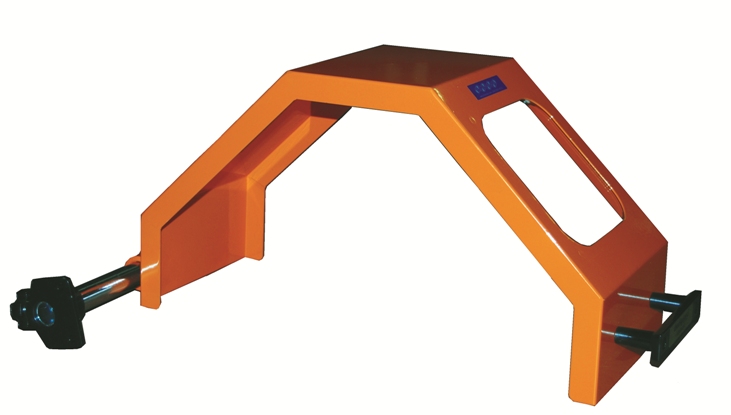

Small Chuckguard

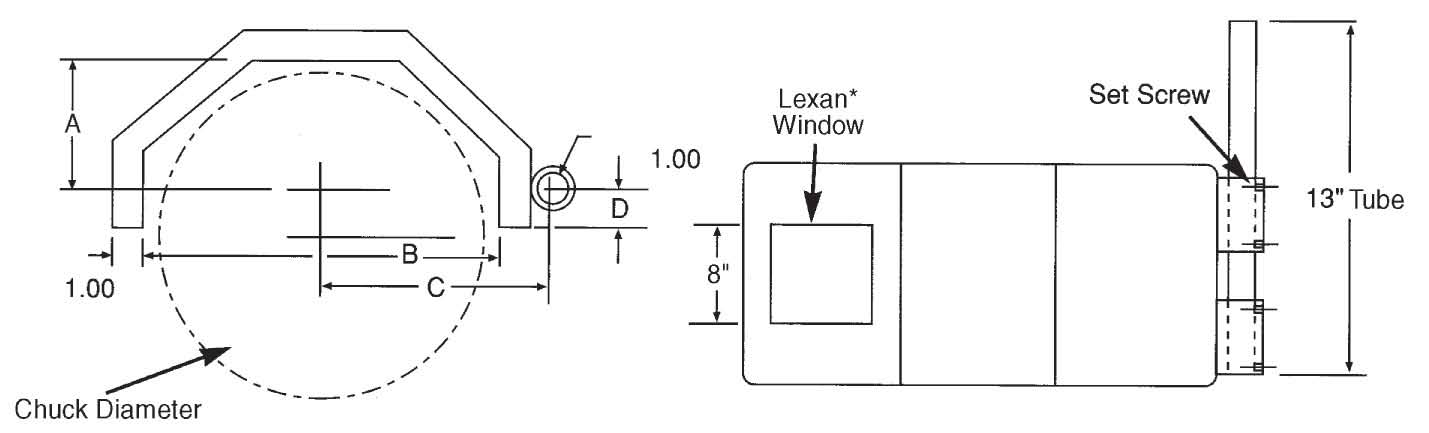

Small Chuckguard Line Drawing

Available with Flexbar Electrical Interlocking-Mounting Brackets.

Model No.
Center Height
(Shield Height)
Use With Chucks
C
B
Shield Length
13250 9.5" Up to 16" dia. 10.25" 19"
13251 10.5" Up to 20" dia. 12.25" 21"
13059 Extra Long Tube 16" for lathes where chuck extends past width guard.

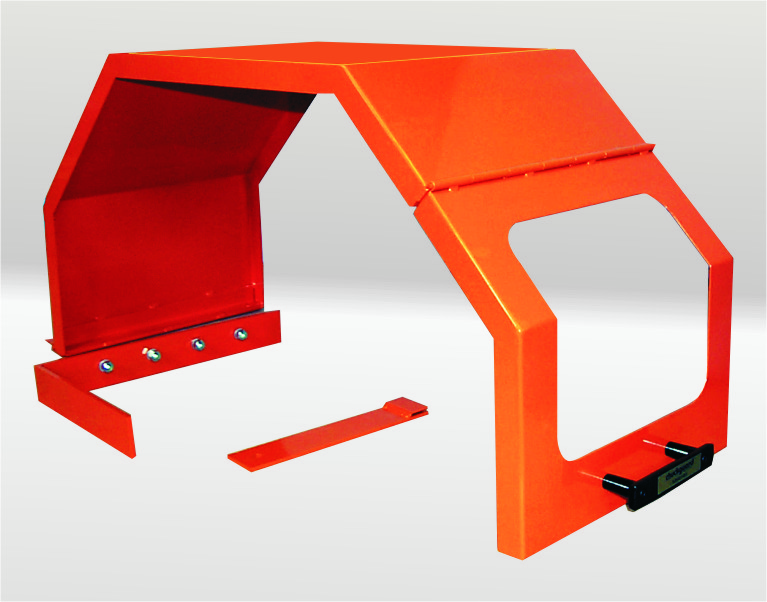

Flexbar Chuckguard™ Super Heavy Duty Steel Guards

Chuckguard
Chuckguard

Made of 14 Gauge Steel for Chucks up to 49" Diameter

Large Diameter Chucks are, by themselves DANGEROUS! (Even more so at high speed settings.) Chuckguards protects the operator and the "passer-by" from serious injuries.

Each Chuckguard is supplied complete with the mounting hinge, plate and support bar for mounting on headstock of lathe.

Features:
  • Hinged front panel allows easy access to the chuck
  • LEXAN® window for easy viewing
  • Comes complete with mounting bracket and support bar for mounting on headstock
  • Bright safety painted finish
  • Exceeds O.S.H.A. requirements
  • Replacement windows available upon request

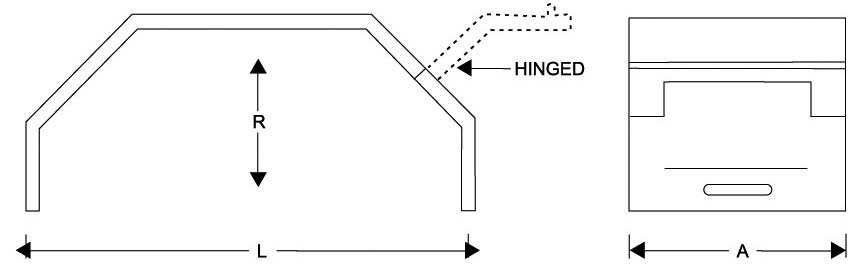

Reference Guide for Selecting Correct Flexbar Steel Chuckguard.

Model No.
A
R
L
Chuck Diameters
13056 14" 17 1/2" 35" 20", 24", 25", 26" 30", 30 1/2"
13057 14" 20" 40" 30 1/2", 32", 36"
13058 14" 25 1/2" 51" 39 1/2", 47", 49"

Also Available...

Extra Large Capacity Chuckguard

Custom Built heavy gauge steel chuck shield available for very large diameter chucks up to 74".
Phone or email for more information!
