Lathe Chuck Safety Wrenches
Spring-loaded, self-ejecting chuck wrenches designed for use with lathes and other machines equipped with manually adjusted chucks.
- Spring-load sleeve ejects the wrench from the chuck after each use
- Chamfered end for easy entry
- Designed to provide proper loads for self-removal of the wrench weight
- Helps prevent accidents
| Model No. |
Nominal Size |
Actual Size |
Bar Dia. |
Overall Dia. |
Engagement Length |
| 15470 |
9/32" SQ |
.271" |
1" |
1.050" |
3/4" |
| 15471 |
5/16" SQ |
.303" |
1" |
1.050" |
3/4" |
| 15472 |
3/8" SQ |
.365" |
1" |
1.050" |
3/4" |
| 15473 |
7/16" SQ |
.427" |
1" |
1.050" |
3/4" |
| 15474 |
1/2" SQ |
.490" |
1" |
1.050" |
3/4" |
| 15475 |
1/2" HEX |
.490" |
1" |
1.050" |
3/4" |
| 15476 |
5/8" HEX |
.615" |
1" |
1.050" |
3/4" |
| 15477 |
9/16" SQ |
.552" |
1.3" |
1.315" |
3/4" |
| 15478 |
5/8" SQ |
.615" |
1.3" |
1.315" |
3/4" |
| 15479 |
11/16" SQ |
.678" |
1.3" |
1.315" |
3/4" |
| 15480 |
3/4" SQ |
.740" |
1.3" |
1.315" |
3/4" |
| 15481 |
3/4" HEX |
.740" |
1.3" |
1.315" |
3/4" |

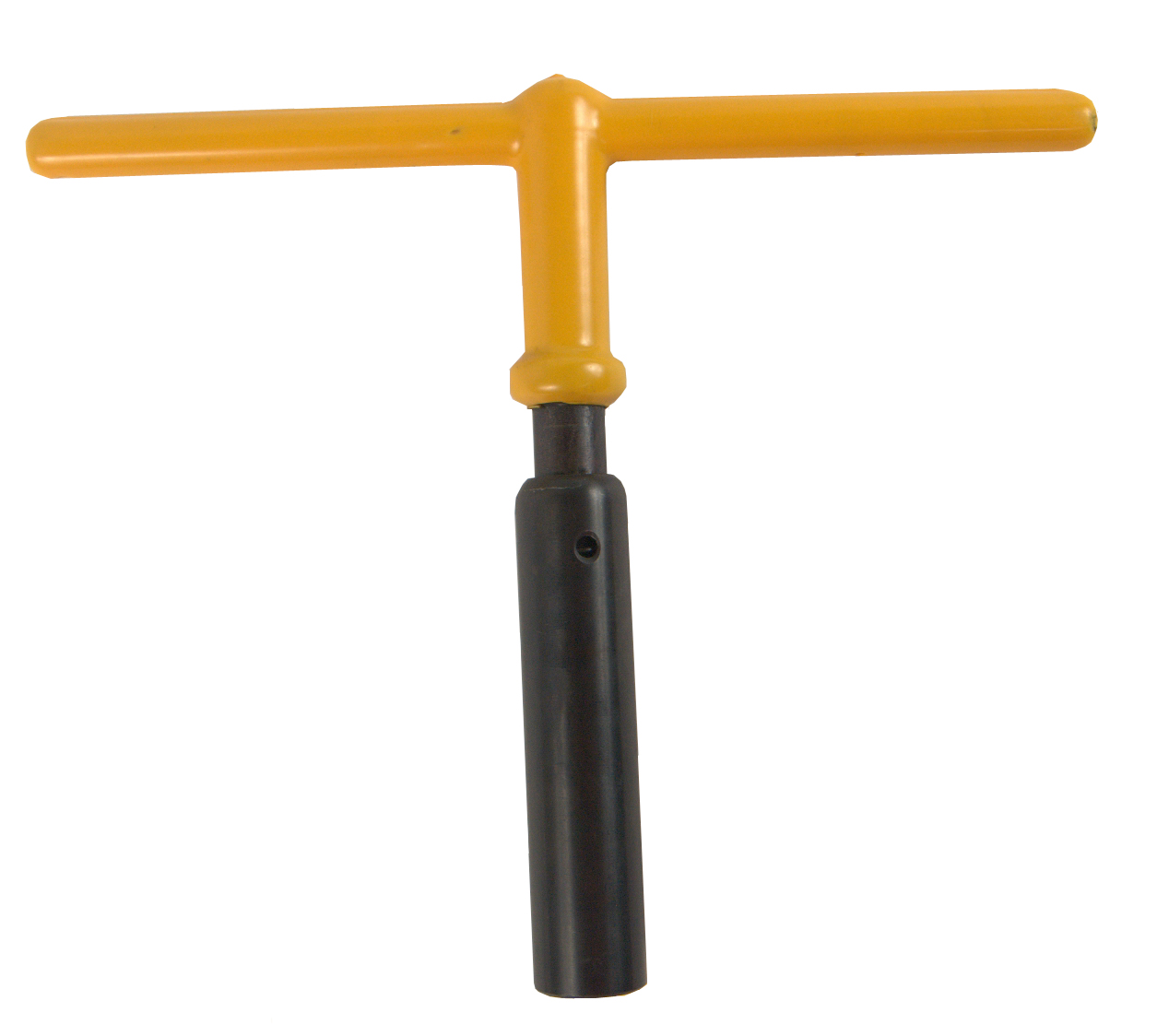

Closed Safety Wrench

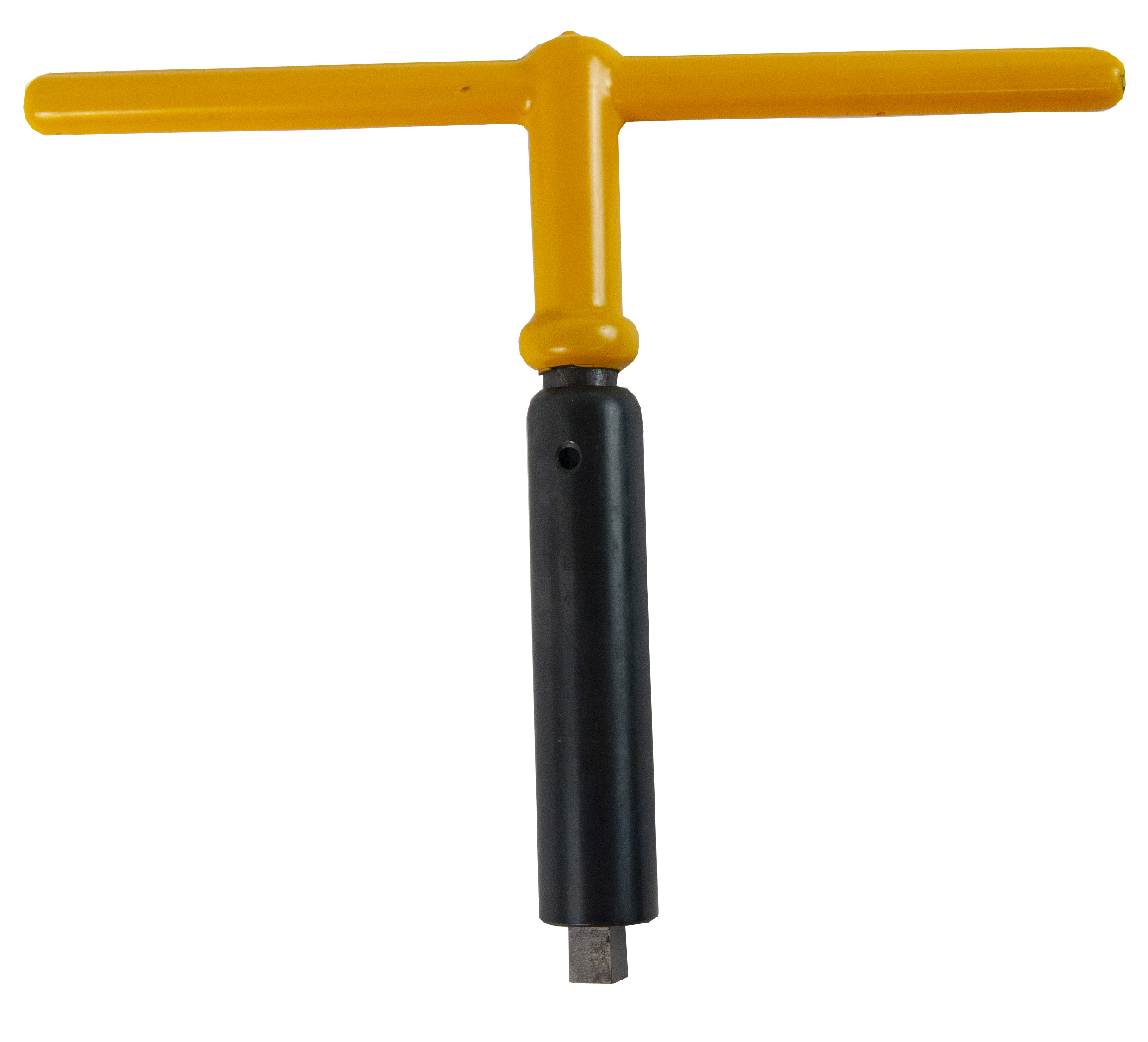

Open Safety Wrench
