Visorguard Universal

Fully Adjustable Long Reach Guard (LEXAN®)
For Milling Machines and Unguarded Machines
Including C.N.C.'s, Multi-spindles, Bandsaws, etc.

Visorguard
Visorguard

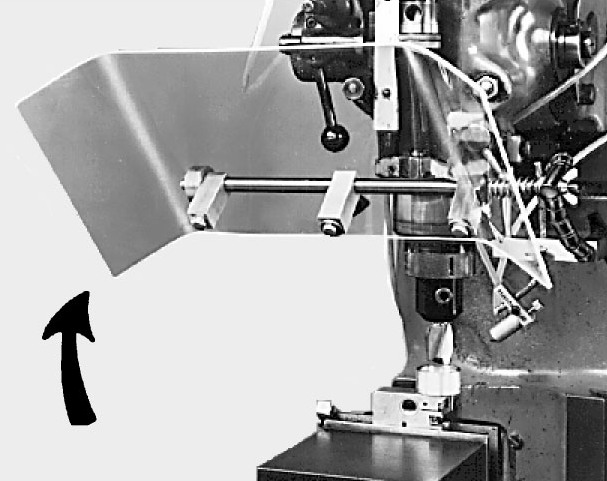

Unique universal positioning design is fully adjustable. Visorguard shield is mounted and supported by a series of heavy duty arms and swivel clamps thus allowing the operator to "custom fit" each guard as to overall length, angle, and position of shield. Wing-shaped Visorguard shield protects workers at adjacent machines.

LONG REACH FROM HEADSTOCK MOUNTING PLATE/POST IS ADJUSTABLE TO 36"

Visorguard Universal consists of:
  • Mounting plate with 4" x ½" post - just drill and tap into headstock ... supplied with four cap screws
  • 2 each 15" x ½" arms (24" arms available upon request - phone or fax)
  • 3 each ½" x ½" heavy duty swivel clamps with extra-large wing style locking knob
  • 16" x 8" high LEXAN® Visorguard shield assembly with 6" attachment post & coupling

13047

Visorguard Universal

13048

Extra-Wide Visorguard Universal - same as 13047 but with 24" wide by 8" high LEXAN® (3/16" thick) for larger machines such as multi-spindles

13054

16" x 8" Replacement Shield

13046

24" x 8" Replacement Shield

Other sizes shields available for Visorguard Universal.


Extra-Large Visorguard LEXAN® Shields*

Now available for use with all Visorguard Models (except 13032). These shields can be used in place of standard 16"W x 8"H shield and attach in seconds.

Model No.
Width
Height
13046 24" 8"
13073 14 1/2" 12"
13074 15" 16"
* Above models - shield only.
