Long Reach Visorguard

For large milling machines (vertical and horizontal) and Unguarded machines including CNC's.

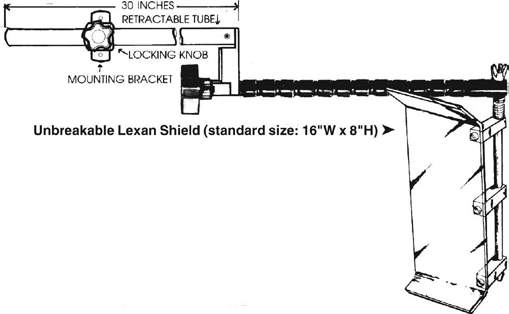

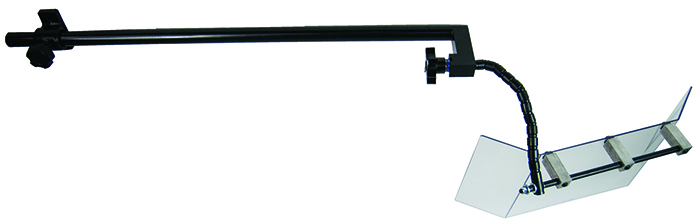

We took a standard Visorguard and made a new body which attaches to a 1" diameter tube 30 inches long. The tube slip fits into our No. 13068 mounting bracket which is included in the device. The 30 inch tube plus the Flexbar Flexarm length provides 40 inches of reach. The extension tube is retractable in the socket of the mounting bracket so that it can be set up for smaller distances from point of attachment to the ideal setting of the Visorguard shield.

Long Reach Visorguard
Long Reach Visorguard

Model No.
Description
13050 Long Reach Visorguard. Complete with hardware, tube, and mounting bracket.
13054 Replacement Shield, 16" wide x 8" high.
80063-6 Ball & Thread Replacement Cable for all Visorguard Models.
Optional Sizes of Visorguard Shields Now Available.
