Flexiguard

Flexiguard

Curved Plastic Shields on Rugged Flexible Goosenecks
2 Models Available
  • Positively deflects chips and coolant.
  • Permits clear & closer visual inspection of work.

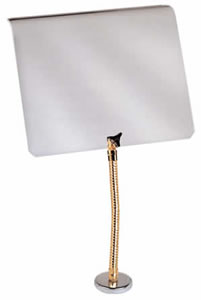

MAGNETIC BASE FLEXIGUARD ON MAGNETIC BASE:
Disc-type magnet - 85lbs. pull. Length of flex arm with magnet - 10". Shield swivels and locks 360°.

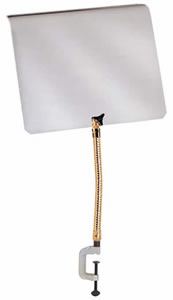

C-CLAMP FLEXIGUARD ON C-CLAMP:
Permits clamping of safety shield on hard-to-affix locations whether flat, round, etc. Made of malleable iron with 120° vee. Clamp capacity - 1 3/8". Throat to center of screw - 11/16". Length of flex arm with C-Clamp - 13 1/2".

Flexiguard Models

Model No. 13001

C-Clamp Flexiguard.
Shield Size 7 1/2" x 10"

Model No. 13002

C-Clamp Flexiguard.
Shield Size 10" x 12"

Model No. 13003

C-Clamp Flexiguard.
Shield Size 12" x 16"


Model No. 13004

Mag. Base Flexiguard.
Shield Size 7 1/2" x 10"
Size of Magnet: 2.65" dia.

Model No. 13005

Mag. Base Flexiguard.
Shield Size 10" x 12"
Size of Magnet: 2.65" dia.

Model No. 13006

Mag. Base Flexiguard.
Shield Size 12" x 16"
Size of Magnet: 3.16" dia.

Replacement Shields



Flexiguard Replacement Shield
Model No.
Description
13007 Carton of 3. Shield Size 7 1/2" x 10"
13008 Carton of 3. Shield Size 10" x 12"
13009 Carton of 3. Shield Size 12" x 16"
13140 1 Shield. Size 7 1/2" x 10"
13141 1 Shield. Size 10" x 12"
13142 1 Shield. Size 12" x 16"

Replacement Parts (shield not included)

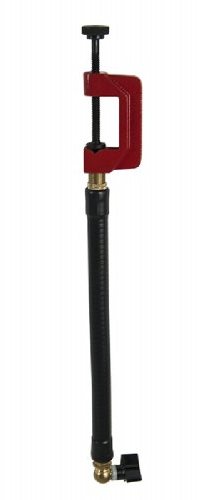

FLEXIGUARD ARM C-CLAMP

Model No.
13137

Flexiguard Arm on C-Clamp.

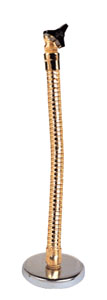

FLEXIGUARD ARM 2.65 MAGNET

Model No.
13138

Flexiguard Arm on 2.65" Dia. Magnet.

FLEXIGUARD ARM 3.16 MAGNET

Model No.
13139

Flexiguard Arm of 3.16" Dia. Magnet.
