Pivot Mount Grinder Guard and Universal Shield

Pivot Mount Grinder Guard and Universal Shield

SEATTLE website template
Each model supplied complete with frame, LEXAN® shield and pivot mount hardware.

Heavy-duty swivel-lock positioning shield protects operator from flying grit and debris. Cast frame with virtually unbreakable 3/16” thick LEXAN® shield will contain and deflect any wheel breakage.

One standard frame with a choice of three sizes of interchangeable LEXAN® shields will provide protection for grinding and buffing wheels up to 14”. An extra heavy-duty steel pivot with locking knob connects the frame to the curved adjustable mounting bracket.


Model No. 13040
Model No. 13041
Model No. 13042
Model No.
For Bench Grinders
Shield Size
13040 6",7",8" 5 1/2" x 5 3/4"
13041 8",10" 6 1/2" x 8 1/2"

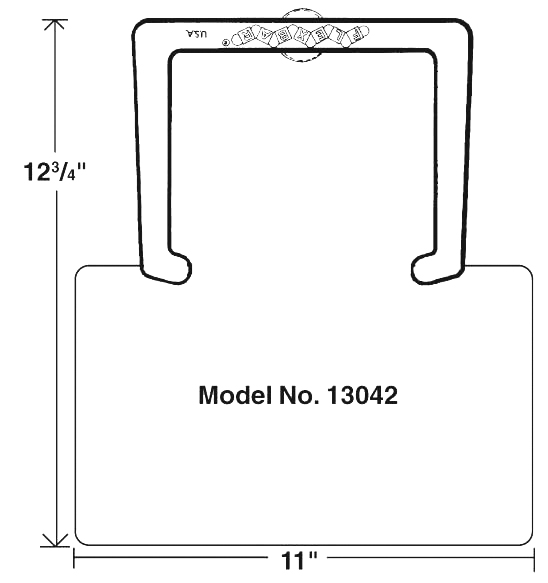

13042 10" and up 12 3/4" x 11"
13043 Lexan® Replacement shield for 13040
13044 Lexan® Replacement shield for 13041
13045 Lexan® Replacement shield for 13042
Model No. 13040

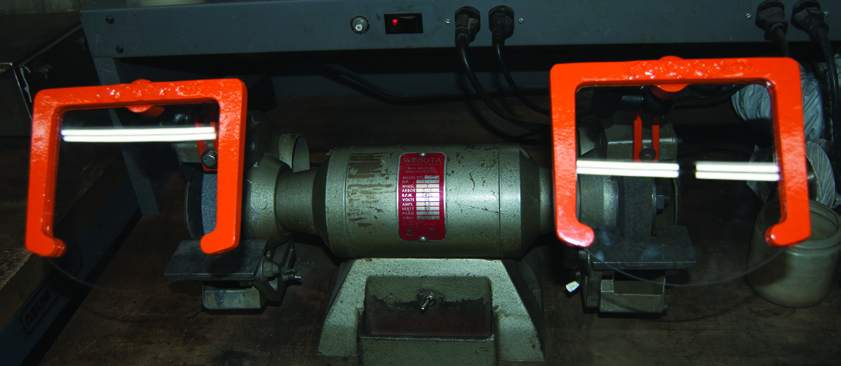

All models sold individually. Shown above, 2 each Model No. 13040.
