Flexbar E.I.M.B.™

Flexbar E.I.M.B.™

Electrical Interlocking Mounting Brackets

For use with all Flexbar Latheguards and Small Chuckguards.

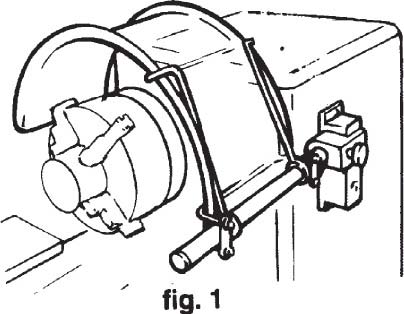

Flexbar EIMB Figure 1

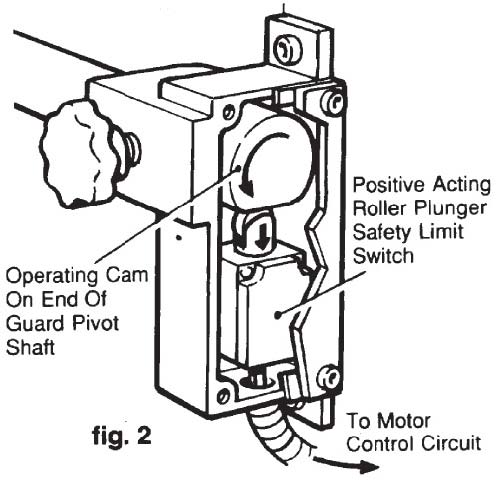

Flexbar EIMB Figure 2

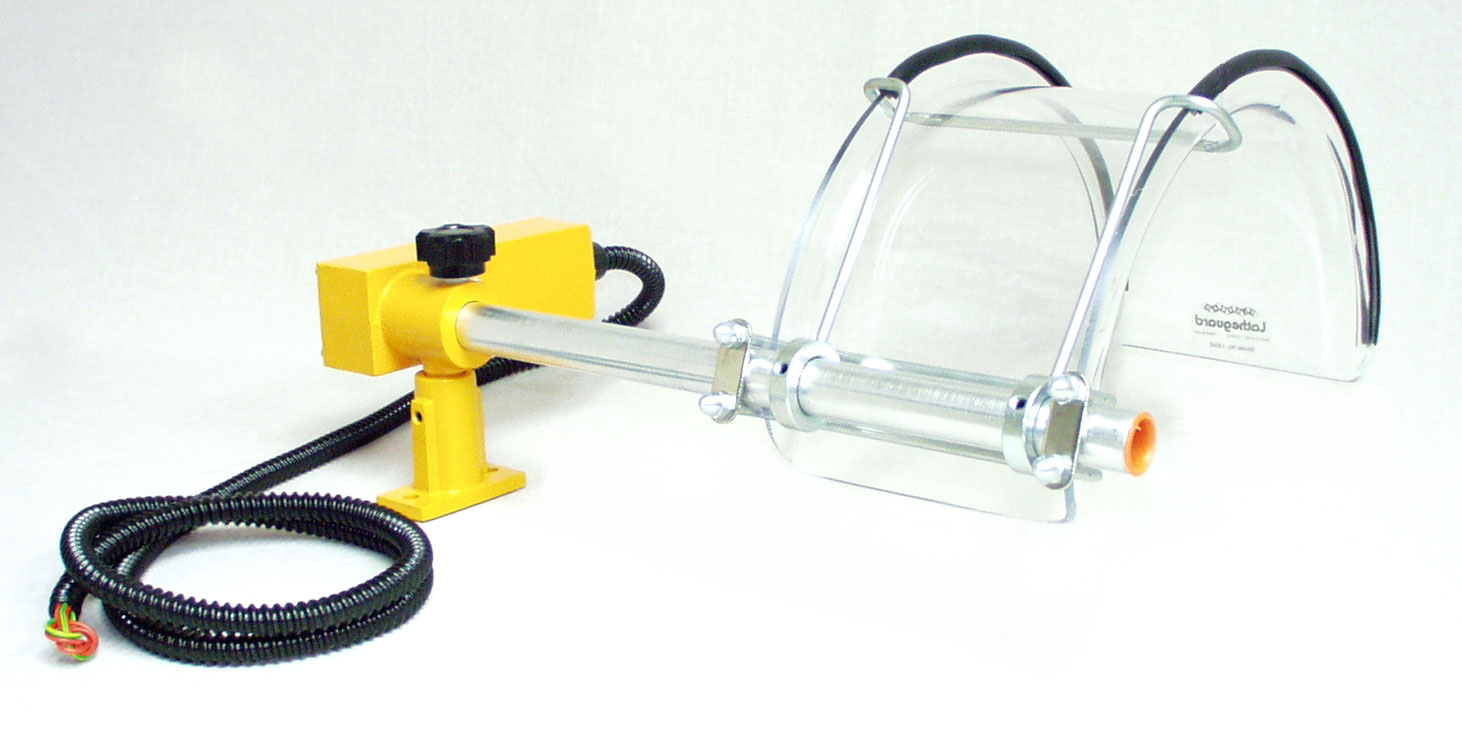

Flexbar EIMB

Specifications

Limit Switch:

  • Roller-type
  • Roller and head are metal in sealed plastic housing
  • Electrical life - 1 million cycles
  • Mechanical life - 30 million cycles
  • NEMA 4 rated
  • Approvals: UL A300, UL E140497, CSA A 300 & CSA LR26716 M20
  • Snap acting SPDT INO-INC with double break ensures switch will open in event of minor contact welding
  • Contact block & roller head are modular hence replaceable without discarding entire device
Electrical Conduit:
  • Extremely flexible and withstands repeated flexing
  • recognized - exceeds industry standards
  • Liquid tight vs. oil, water and most chemicals
  • and certified and recognized.
*Fittings: Inside is nylon with BUNA-N gland which seals the two each (2) 18 gage wires, plus a grounding wire.


Available in 4 Different Mounting Styles:
Mounting Style 17001 17001
Mounting Style 17002 17002
Mounting Style 17003 17003
Mounting Style 17004 17004


Included with each E.I.M.B. model:

  • Electrical Interlock Box with safety limit switch, wiring and mounting bracket with locking knob
  • Special Latheguard tube
  • Wiring diagram


Dimensions of rectangular box portion of E.I.M.B.:
Approx. 6 5/8 x 2 3/8 x 1 5/8 in.(168mm x 60mm x 41.3mm)

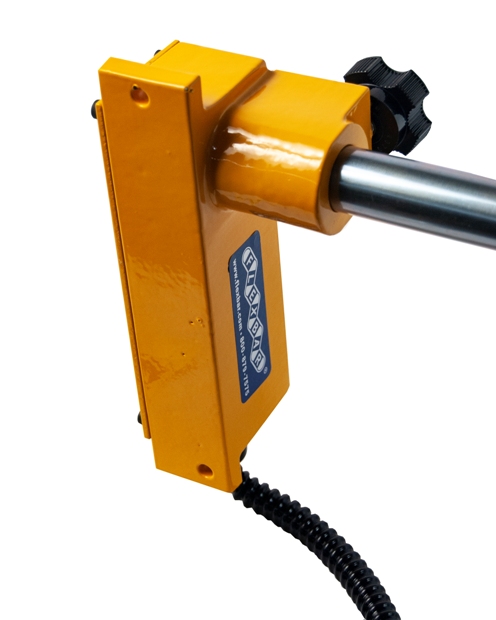

17001

Style 1 - Mount at back of lathe (see figure 1). For all shield sizes.

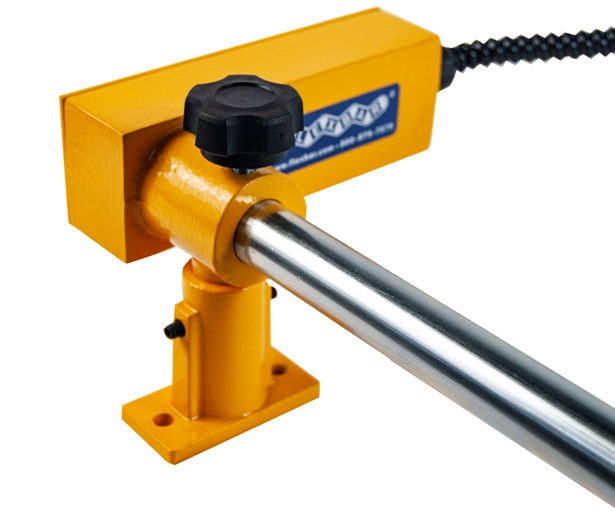

17002

Style 2 - Telescoping & Swiveling Style. For lathes with irregular or dome-shaped headstock, E.G. -Hardinge. For all shield sizes.

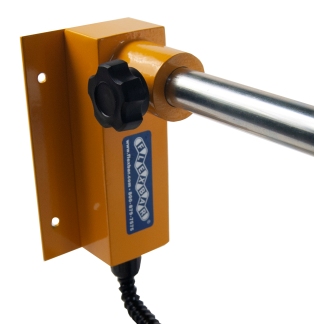

17003

Style 3 - Mount on face of headstock. Backplate can be reversed 180° on housing thus flange portion cab be on right (as shown) or on the left side, if reversed. All shield sizes.

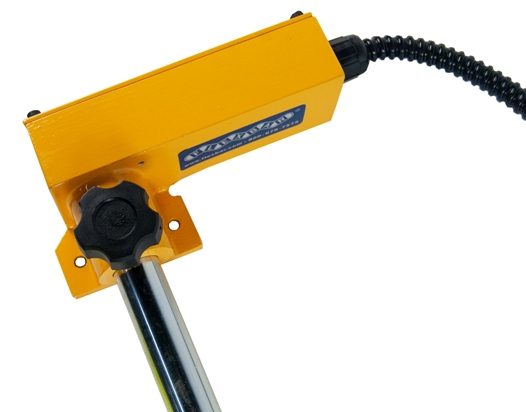

17004

Style 4 - Top mounting for flat top of headstock. All shield sizes. Note: Observing the lathe structure and taking a few measurements makes proper selection easy.

ABOVE E.I.M.B. MODELS DO NOT INCLUDE LATHEGUARD SHIELDS/ASSEMBLIES.
REFER TO LATHEGUARD™ OR SMALL CHUCKGUARDS TO ORDER.
