Flexbar Drillguard™

Flexbar Drillguard™

Provides Complete Operator Protection!

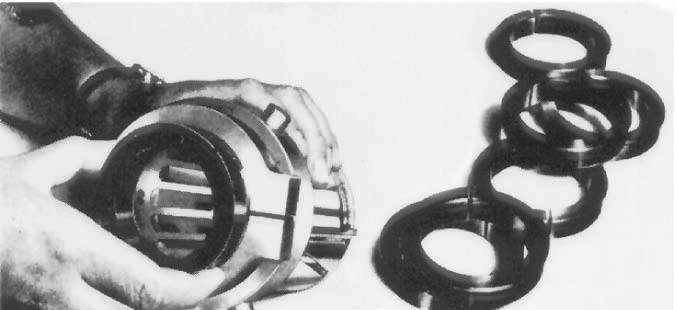

Interchangeable bushings available to accommodate most drill press quill sizes.

Features:

  1. Complete operator vision and protection assured.
  2. Smooth telescopic action via patented spiral guide grooves-window caged housing moves up while drill comes down; hence cutting tool is totally guarded.
  3. For drill changes - simply pull down on housing. Three spring loaded ball catches disengage and the housing drops out. Conversely, it quickly snaps back in place.
  4. Inner cage moving down protects window hence the operator from metal slivers.


Quality made of heavy duty material, Drillguard comes complete with installation and operation instruction. The Quill Ring (which hold cage housing) is made of heavy die-cast aluminum, with smooth finish.

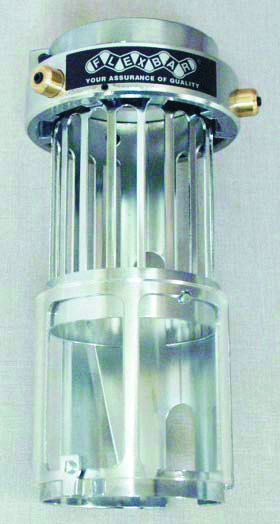

Drillguard
Drillguard
Drillguard Sketch
Drillguard Use
Model No.
Description
Fits Quill Dia.
(inches)
Up To
From
13125 Drillguard 2.75" to 2.626"
13127 Bushing 2.625" to 2.563"
13128 Bushing 2.562" to 2.501"
13129 Bushing 2.500" to 2.438"
13130 Bushing 2.437" to 2.376"
13131 Bushing 2.375" to 2.313"
13132 Bushing 2.312" to 2.251"
13133 Bushing 2.250" to 2.188"
13134 Bushing 2.187" to 2.126"
13135 Bushing 2.125" to 2.063"
13136 Bushing 2.062" to 2.000"
(or Metric Equivalent)
13126 Acrylic Replacement window for 13125
While Maximum diameter shown is 2 3/4" the mounting collar can be chucked and bored out to 2 7/8" diameter or slightly more.
